The VOS Open Spring Mount is an exposed coil vibration isolator (10-2400kgf capacity, 25mm deflection) for pumps and HVAC equipment. Features adjustable height, visual spring inspection, and meets KS B 1563 standards. Not for high side loads.

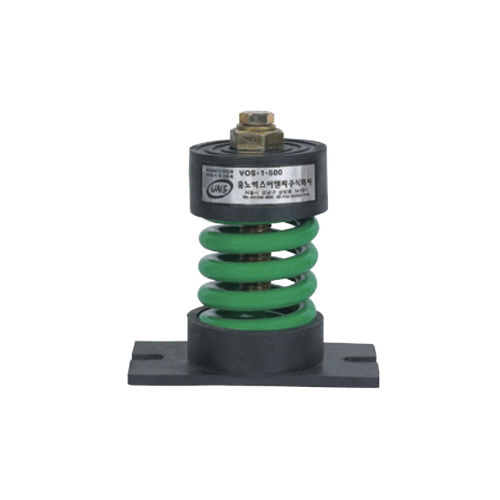

UNOVICS Open Spring (VOS)
Size
VOS-1-10: 10 kgf | 25 mm | 0.4 kgf/mm
VOS-1-25: 25 kgf | 25 mm | 1.0 kgf/mm
VOS-1-50: 50 kgf | 25 mm | 2.0 kgf/mm
VOS-1-100: 100 kgf | 25 mm | 4.0 kgf/mm
VOS-1-150: 150 kgf | 25 mm | 6.0 kgf/mm
VOS-1-200: 200 kgf | 25 mm | 8.0 kgf/mm
VOS-1-300: 300 kgf | 25 mm | 12.0 kgf/mm
VOS-1-400: 400 kgf | 25 mm | 16.0 kgf/mm
VOS-1-500: 500 kgf | 25 mm | 20.0 kgf/mm
VOS-1-600: 600 kgf | 25 mm | 24.0 kgf/mm
VOS-1-750: 750 kgf | 25 mm | 30.0 kgf/mm
VOS-1-1000: 1000 kgf | 25 mm | 40.0 kgf/mm
VOS-1-1200: 1200 kgf | 25 mm | 48.0 kgf/mm
VOS-1-1500: 1500 kgf | 25 mm | 60.0 kgf/mm
VOS-1-2000: 2000 kgf | 25 mm | 80.0 kgf/mm
VOS-1-2400: 2400 kgf | 25 mm | 96.0 kgf/mm
