MTCP Pipe Support
MTCP Pipe Support - Image 2
MTCP Pipe Support - Image 3
MTCP Pipe Support - Image 4

MTCP Pipe Support

Get a Quote
Request Warranty Certificate
Request Distributor Certificate

MTC-24PSA Saddle Support with U-bolt: Carbon steel, zinc-plated, fixed-height support (2½”-38″ pipes), U-bolt stabilized, complies with WW-H-171E/MSS SP-69/58 (Type 36,37).

MTC-25PSA Pipe Support Assembly: Carbon steel, zinc-plated, adjustable-height (2½”-36″ pipes), for stanchion mounting, complies with WW-H-171E/MSS SP-69/58 (Type 37,38).

MTC-26PSA Adjustable Pipe Support: Carbon steel, zinc-plated, NPT-threaded adjustment (4″-10″ pipes), welded saddle design, complies with WW-H-171E/MSS SP-69/58 (Type 38).

MTC-27PSA Adjustable Support Assembly: Carbon steel, zinc-plated, full vertical adjustment (2½”-36″ pipes), threaded rod system, complies with WW-H-171E/MSS SP-69/58 (Type 38).

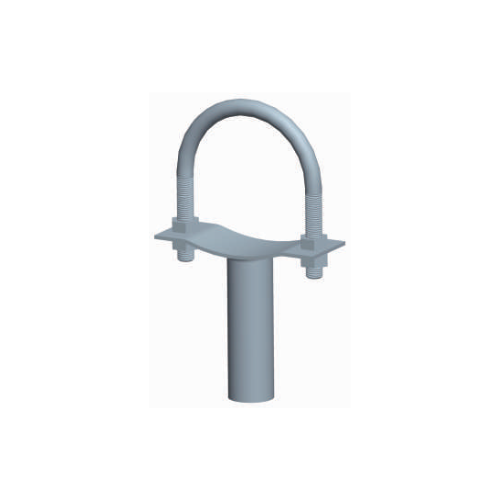

  1. Saddle Support with U-bolt (MTC-24PSA)
    Description: Stanchion-type support where vertical adjustment is not needed, with U-bolt for additional stability.
    Sizes: 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 30″, 32″, 36″
  2. Pipe Support Assembly (MTC-25PSA)
    Description: Supports horizontal pipe from stanchions where vertical adjustment is needed.
    Sizes: 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 30″, 32″, 36″

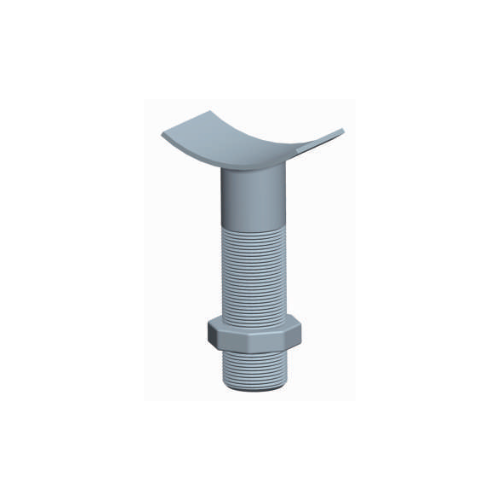

  3. Adjustable Pipe Support (MTC-26PSA)
    Description: Pipe welded to saddle with lock nut allowing for vertical adjustment in pipe stanchion.
    Sizes: 4″, 6″, 8″, 10″

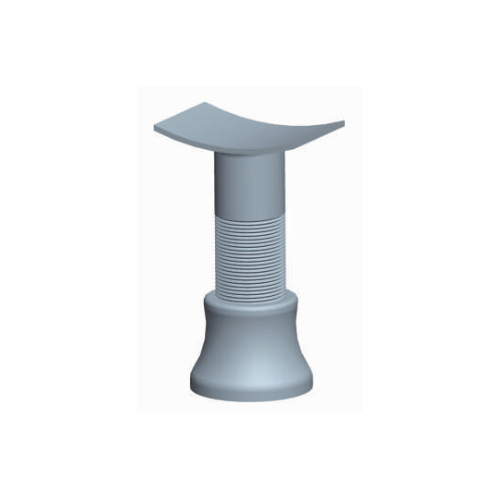

  4. Adjustable Pipe Support Assembly (MTC-27PSA)
    Description: Supports horizontal pipe from stanchions where vertical adjustment is needed.
    Sizes: 2-1/2″, 3″, 3-1/2″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 30″, 32″, 36″
