MTC Clevis Hangers are carbon steel supports used to hang pipes, ducts, and conduits. They allow for adjustment, thermal expansion, and vibration absorption and are available with felt or EPDM rubber lining for protection and noise reduction.
MTCP Clevis Hanger
Size

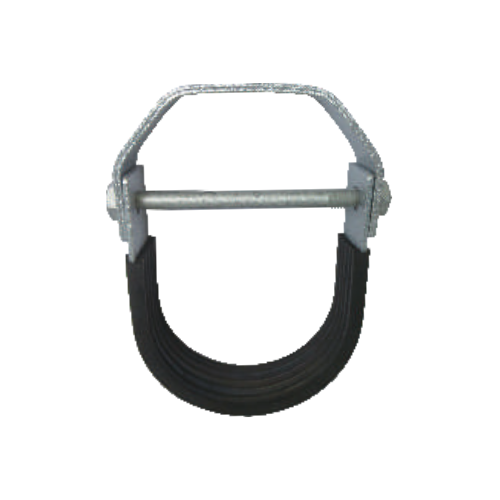

- Heavy Duty (MTC-UL603)
Hot Dip Galvanized/Electro-Galvanized/Zinc Rich Composite finish.
UL/FM approved up to 8″.
Sizes: ½”, ¾”, 1″, 1-¼”, 1-½”, 2″, 2-½”, 3″, 3-½”, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″
Max Load: 610 lbs to 4800 lbs

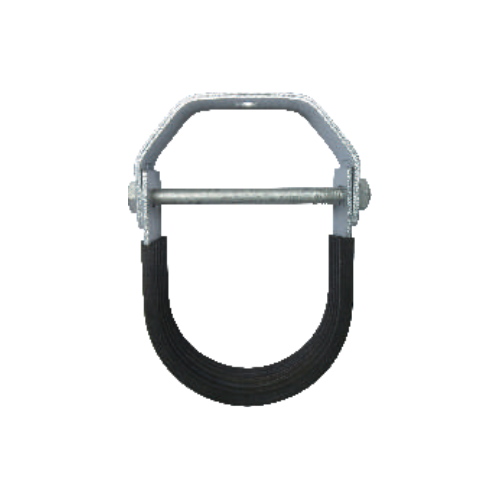

Rod: 3/8″ to 1″ - Standard Duty (MTC-UL604)
Hot Dip Galvanized/Electro-Galvanized/Zinc Rich Composite finish.
UL approved up to 2″.
Sizes: ½”, ¾”, 1″, 1-¼”, 1-½”, 2″, 2-½”, 3″, 4″
Max Load: 150 lbs to 400 lbs

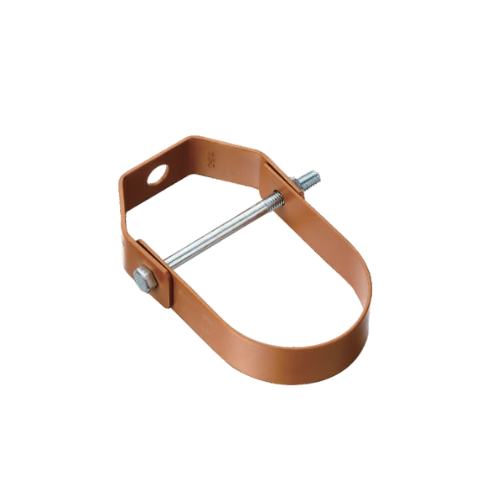

Rod: 3/8″ to 5/8″ - Light Duty (MTC-605) – for Copper Tubing
Copper-Colored Epoxy finish.
Sizes: ½”, ¾”, 1″, 1-¼”, 1-½”, 2″, 2-½”, 3″, 4″, 5″, 6″
Max Load: 150 lbs to 550 lbs
Rod: 3/8″ to 5/8″
